The Integrations Interface

The interface for syncing data has been updated to improve the workflow. There are now two tabs; one for syncing and the other for perusing transcripts.

Configuration and Syncing

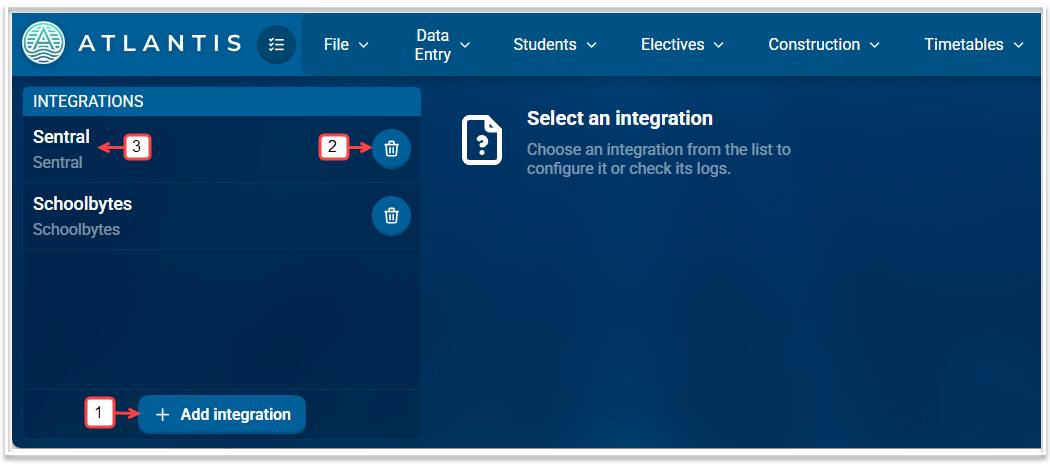

Navigate to File > Integrations to see the following screen.

  1. Select 'Add integration' to create a new integration. See additional articles for creating integrations and syncing with Sentral, TASS, Edumate and Schoolbytes.
  2. Select 'the trash icon to remove an integration.
  3. To view the next screen, select the required system from the list in the Integrations panel

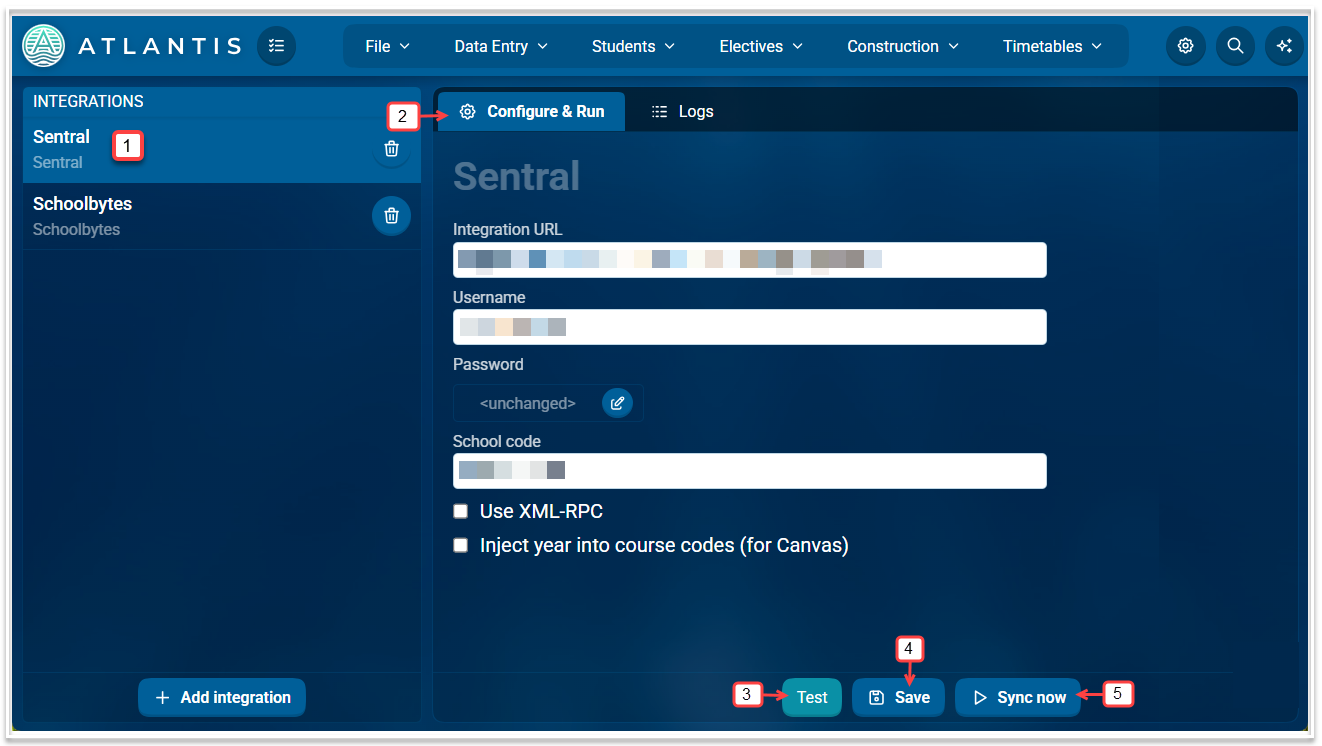

  1. The selected system is highlighted.
  2. The first tab, Configure & Run, is displayed, showing the setup for the selected system. Note that the configuration set up will be different for different systems.
  3. Use the Test button to check that the integration has been configured correctly.
  4. Use Save when any changes have been made to the configuration.

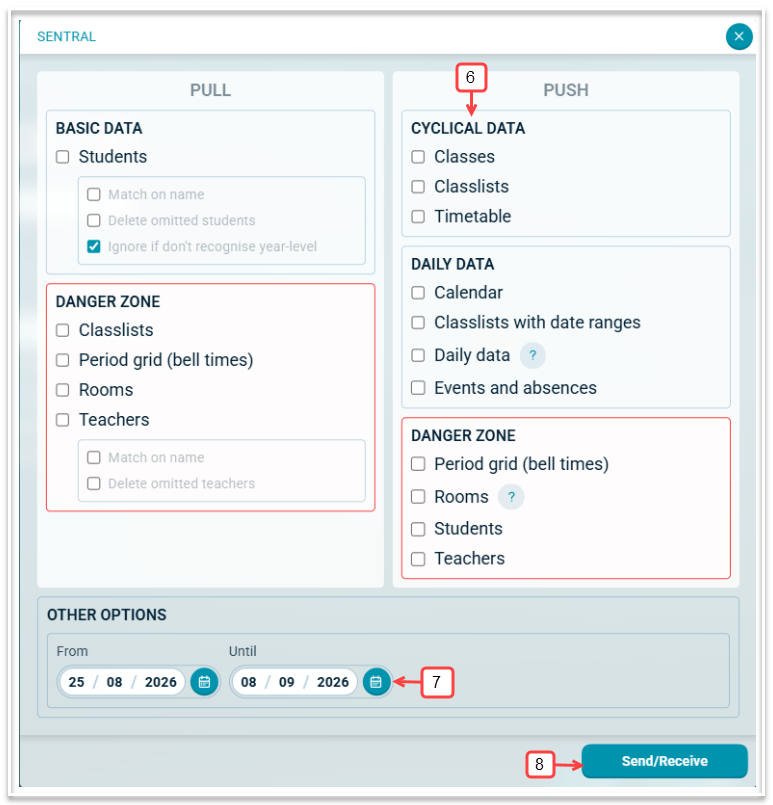

  5. Select Sync now to open up the sync dialog.
  6. Select the required calls. See this article for information on each of the calls.
  7. Select the date range.
  8. Select Send /Receive to complete the sync.

Sync Logs

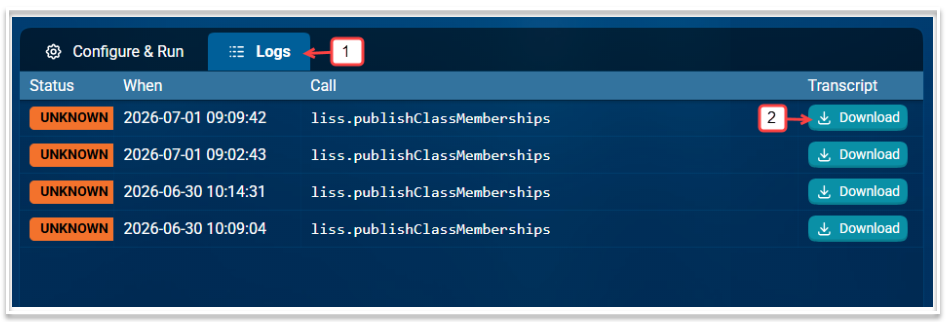

  1. To peruse transcripts, select the second tab, Logs.
  2. To view a transcript for a particular sync, select the 'Download' button that corresponds with the required date, time and sync type.
  3. Open the downloaded text file to check what data was synced.
